Introduktion :

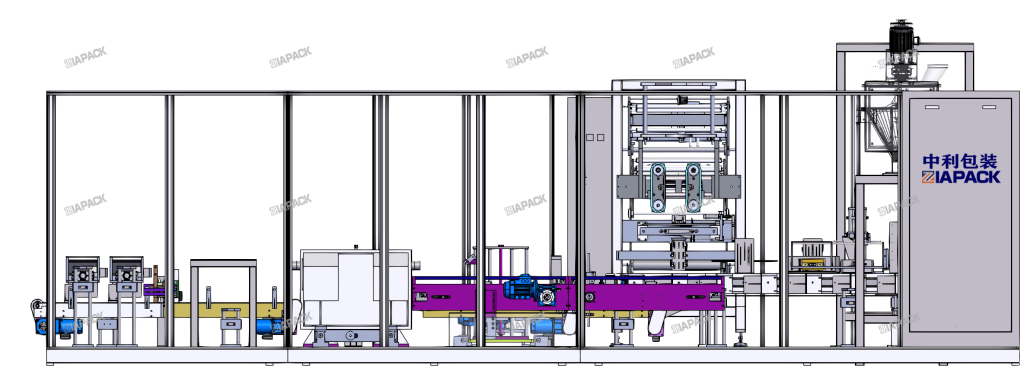

This machine including one set ZL420 vertical bag making packing and sealing machine .one set ZLA2000 Auger measuring machine ,One set ZL100V2 double vacuum chamber packing machine ,and one set output conveyor .The machine have the function of bag forming ,product filling ,bag cleaning and vacuuming .Can choose thermal transfer coding machine which are more popular for make date coding on Coffee brick vacuum bag .This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder wheat flour and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high can be reach 8bag/min .The finished product is very nice and have a long shelf life.
Tekniske parametre:
Model: ZL100V2 (dobbelt vakuumkammer)
Packing speed :200-250gram 20-25bag/min
Machine dimension:6800*2300*4080mm
Power :25kw
Air supply :8Bar 0.8m3/min (Suggest client use air storage tank with volume is 1.5cbm)
Bag dimension : Width 80mm Depth 44mm Height from 150 mm
