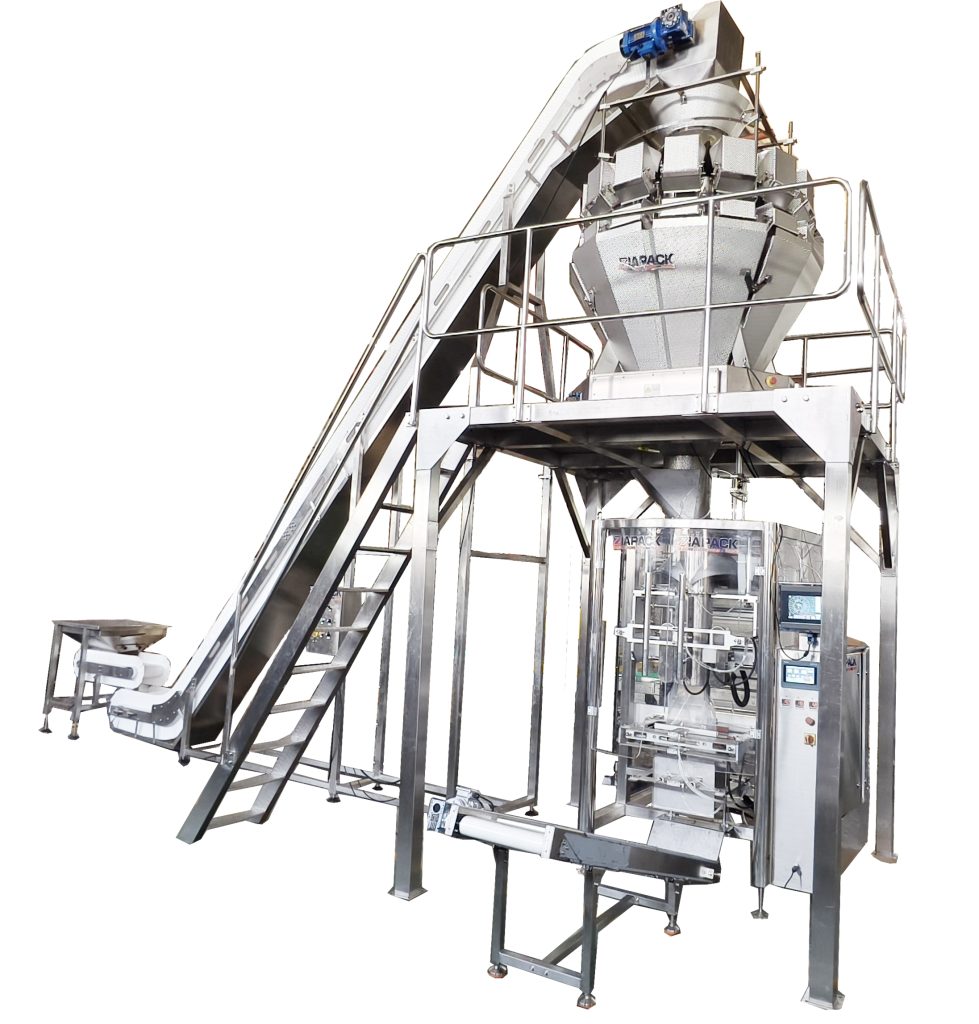

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Ansøgning:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Funktioner:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Introduktion :
Denne maskine kan automatisk realisere funktioner til posefremstilling, påfyldning, forsegling, udskrivning, skæring osv. Denne maskine kan automatisk nå posen, der danner påfyldning og forsegling.
Denne pakkemaskine anvender importservomotor til filmfremføring, og man-maskine-grænsefladen bruger avanceret berøringsskærm. Betjening enklere og mere bekvem. Alle komponenter vedtager internationalt kendt mærke, PLC er SIEMENS, servomotor er PANASONIC, berøringsskærm er SIEMENS, cylinder og luftventil er SMC. dele, der kommer i kontakt med materiale 、kontrolskab 、hovedramme er lavet af rustfrit stål304
Tekniske parametre:
| Model | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Bag længde | 150-480mm by secondary film pulling the bag length can be longer |
| Bag bredde | 120-375mm(Side width +front width ) |
| Filmbredde | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Strøm | 6KW 380V±10% 50Hz |
| Maskinstørrelse | 1650*1500*1750mm |
| Maskinvægt | 650 kg |
